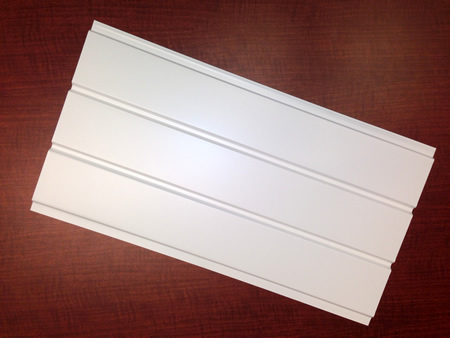

| 12" Solid Soffit Panel |
 |
Specifications:
- 12" Coverage
- 12 Ft. Long
- 16 Pcs. per Carton
- .016 Gauge 3105 H26 Aluminum or equal
- 192 Sq. Ft. Carton
- Polyester Paint
|
|

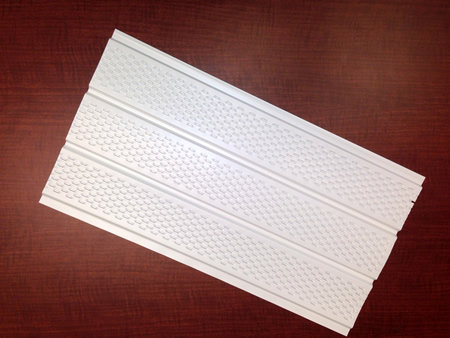

| 12" Full Vent Soffit Panel |
 |
Specifications:
- 12" Coverage
- 12 Ft. Long
- 16 Pcs. per Carton
- .016 Gauge 3105 H26 Aluminum or equal
- 192 Sq. Ft. per Carton
- Net Free Air Space
9.72 Sq. In. per Lineal Ft.
- Polyester Paint
|
|

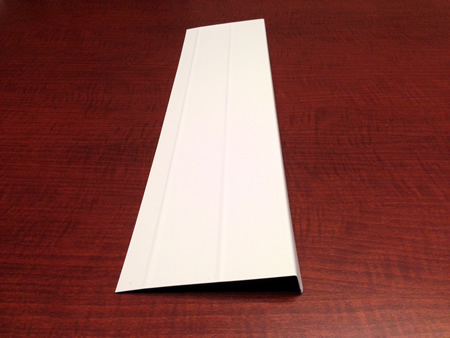

6" Beaded Fascia
&
8" Beaded Fascia |
 |
Specifications:
- 12 Ft. Long
- 25 Pcs. per Carton
- 300 Lineal Ft. per Carton
- .024 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|
| 24" Trim Coil |
 |
Specifications:
- 24" Wide x 50 Ft. Long
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|
| F Channel |
 |
Specifications:
- Reversible
- 12 Ft. Long
- 40 Pcs. per Carton
- 480 Lineal Ft. per Carton
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|

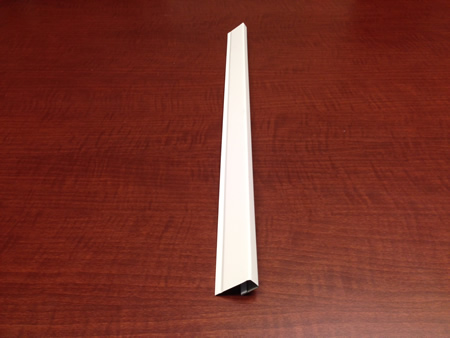

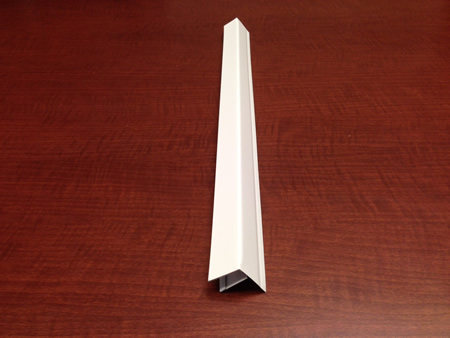

| J Channel |
 |
Specifications:
- 12 Ft. Long
- 50 Pcs. per Carton
- 600 Lineal Ft. per Carton
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|

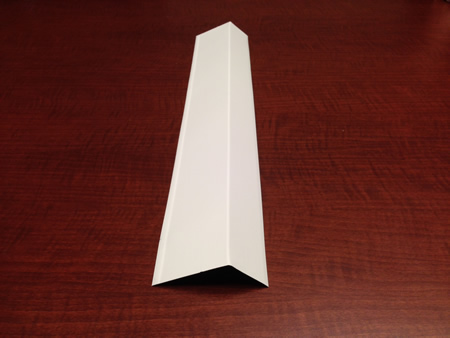

| Gutter Apron |
 |
Specifications:
- 10 Ft. Long
- 30 Pcs. per Bundle
- 300 Lineal Ft. per Bundle
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|

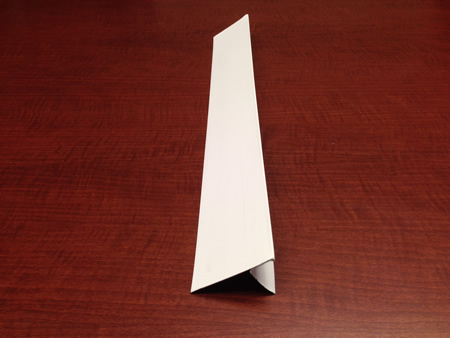

1 1/2" Outside Drip Edge
with 1" Overhang |
 |
Specifications:
- 12 Ft. Long
- 18 Pcs. per Carton
- 216 Lineal Ft. per Carton
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|

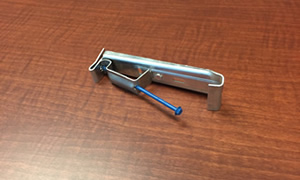

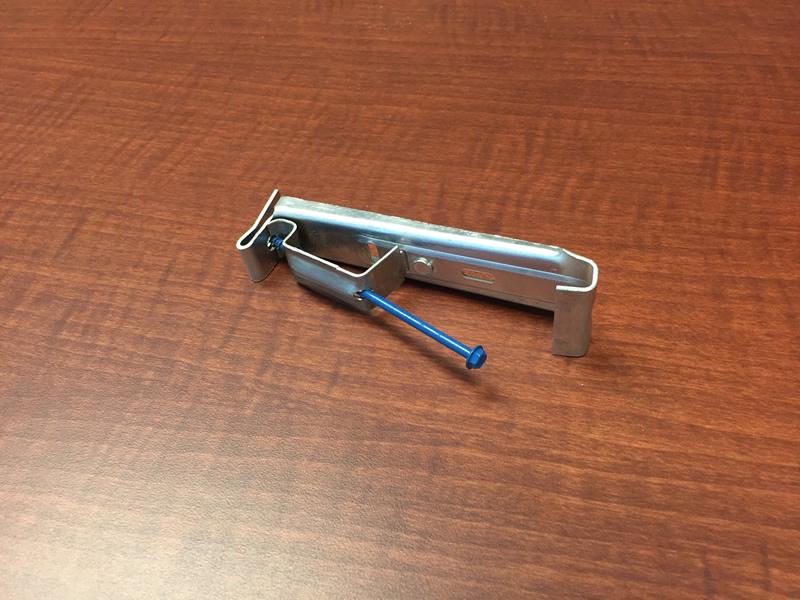

| 5" Hidden Hanger (Heavy Duty) |
 |
Specifications:
- 400 Pcs. per Carton
- 4" Tapcon Screw
- Bare .060 1100 Zero Aluminum
|
|

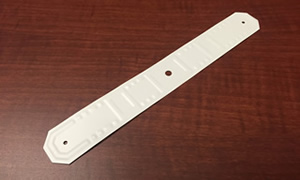

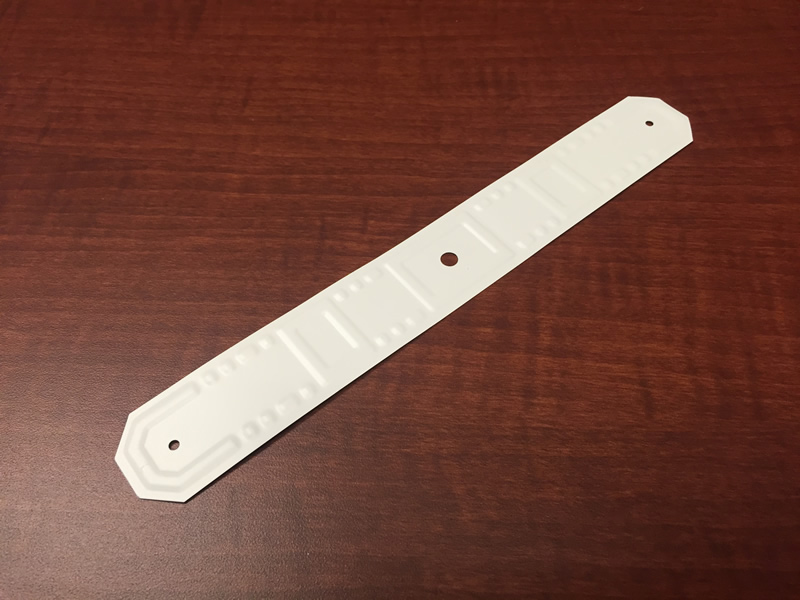

| Pipe Band |
 |
Specifications:
- fits 2"x3" and 3"x4" Downspouts
- 100 Pcs. per Carton
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|

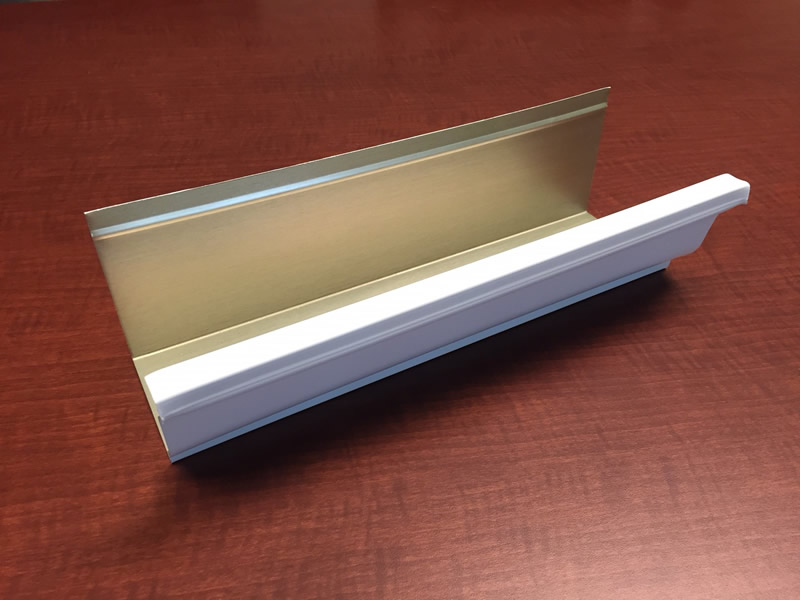

| 5" K Gutter |
 |
Specifications:
- .032 Gauge 3105 H26 Aluminum or equal
- Job Pack Lengths
- Master Coils Available, Approx. 330 lbs.
- Polyester Paint
|
|

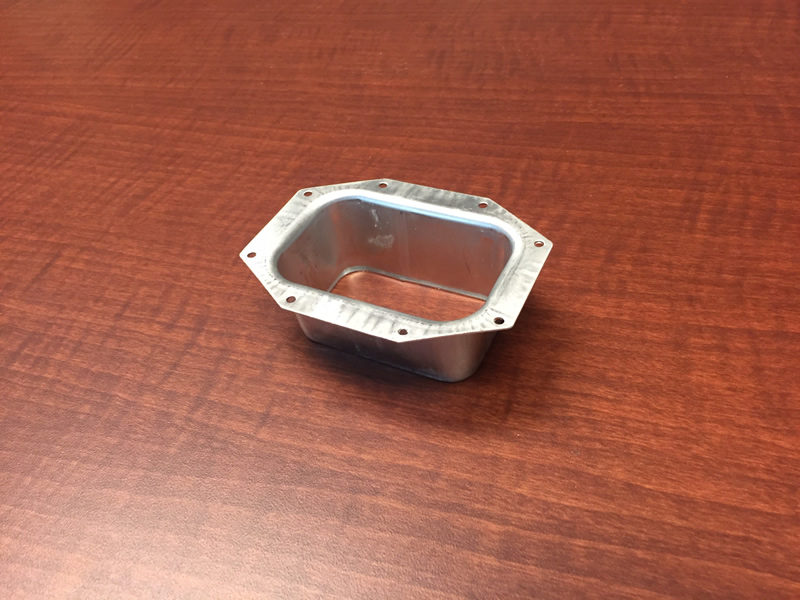

| Rectangular Outlets |
 |
Specifications:
- 2"x 3" Outlets / 30 Pcs. per Carton
- 3"x 4" Outlets / 50 Pcs. per Carton
- Bare .050 1100 Zero Aluminum
|
|

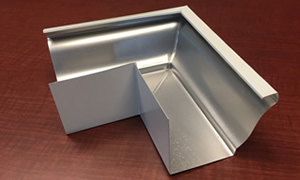

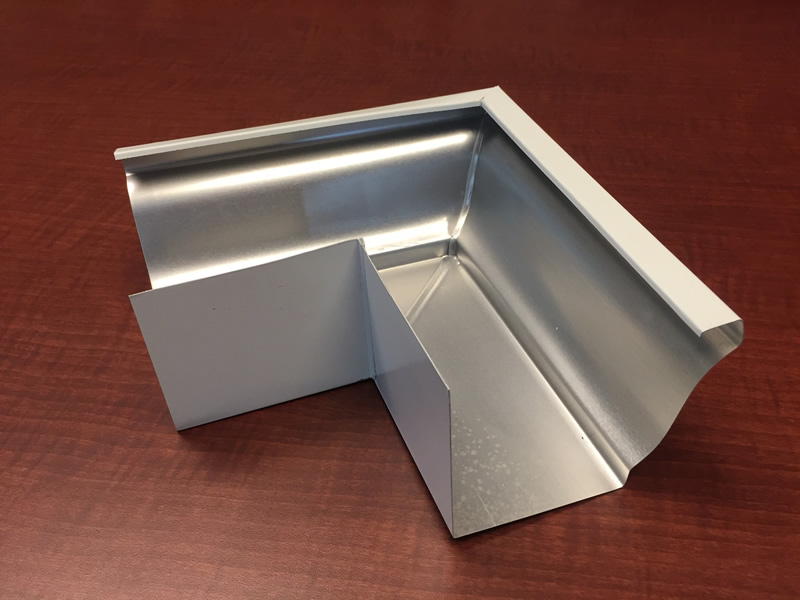

| 5" K Outside Miter |
 |
Specifications:
- 20 Pcs. per Carton
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|

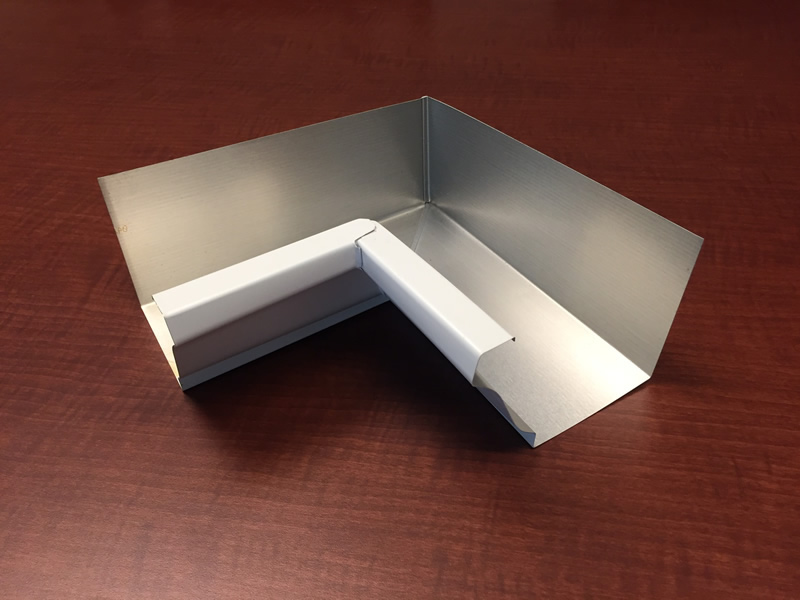

| 5" K Inside Miter |
 |
Specifications:
- 20 Pcs. per Carton
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|

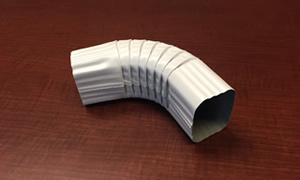

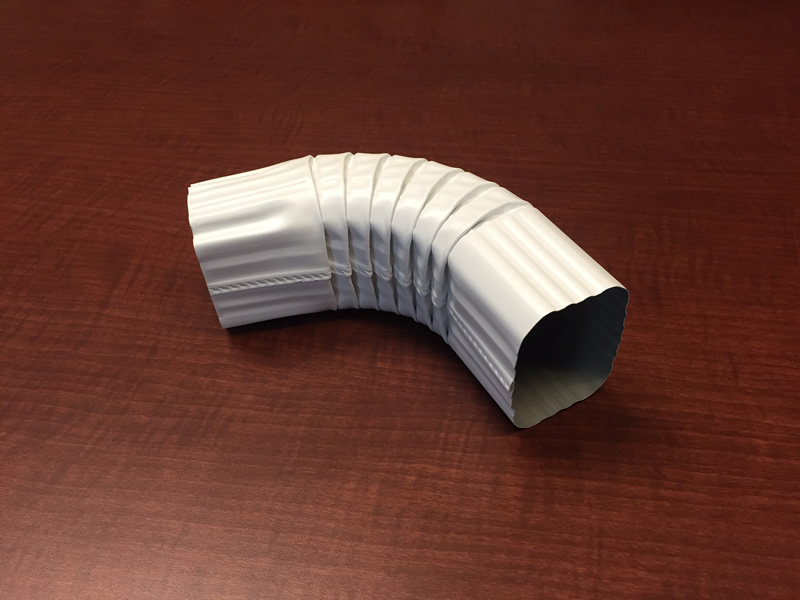

2"x 3" B Elbow
&
3"x 4" B Elbow |
 |
Specifications:
- 30 - 20 Pcs. per Carton
- 75 Degree Angle
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|

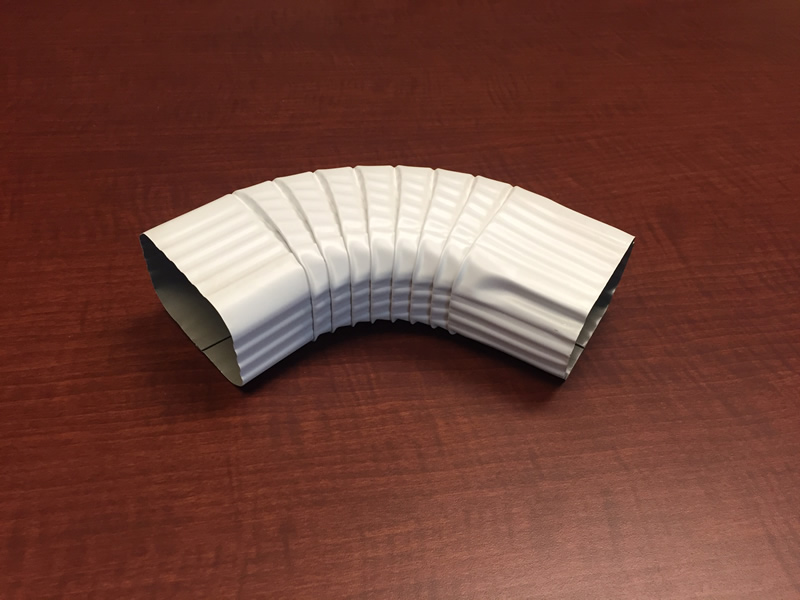

2"x 3" A Elbow
&
3"x 4" A Elbow |
 |
Specifications:
- 30 - 20 Pcs. per Carton
- 75 Degree Angle
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|

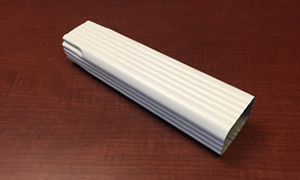

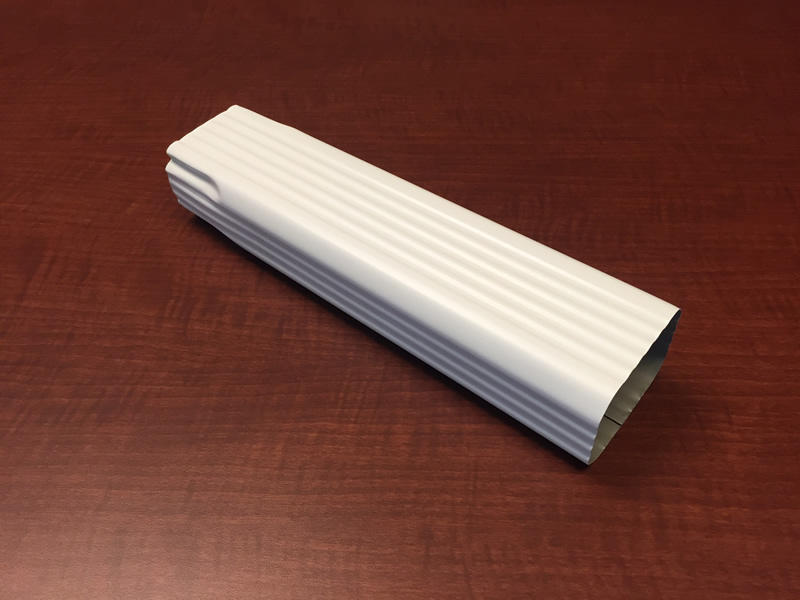

2"x 3" Downspout
&
3"x 4" Downspout |
 |
Specifications:
- 10 Pcs. per Carton
- 10 Ft. Long
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
|

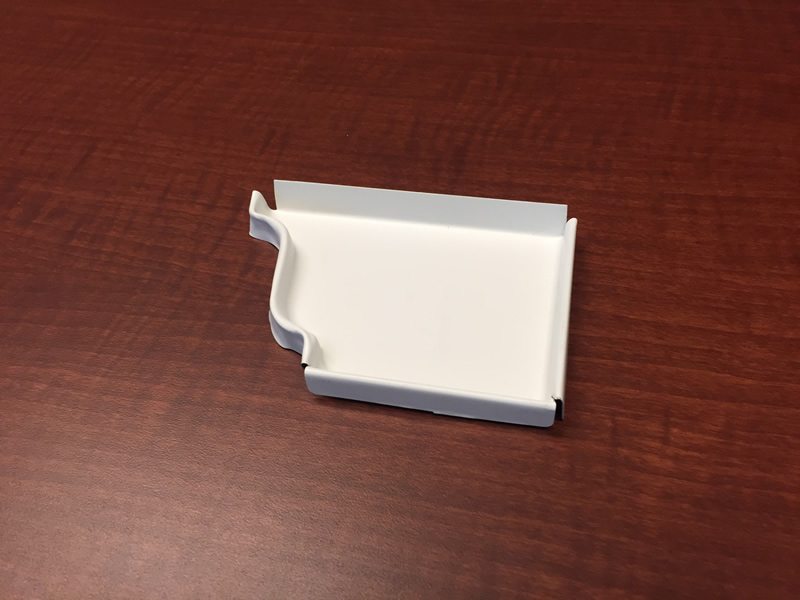

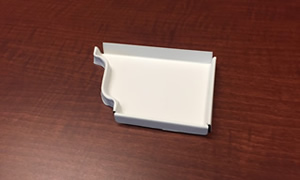

| 5" K Endcaps (Left/Right) |
 |
Specifications:
- 50 Pcs. per Carton
- .019 Gauge 3105 H26 Aluminum or equal
- Polyester Paint
|
